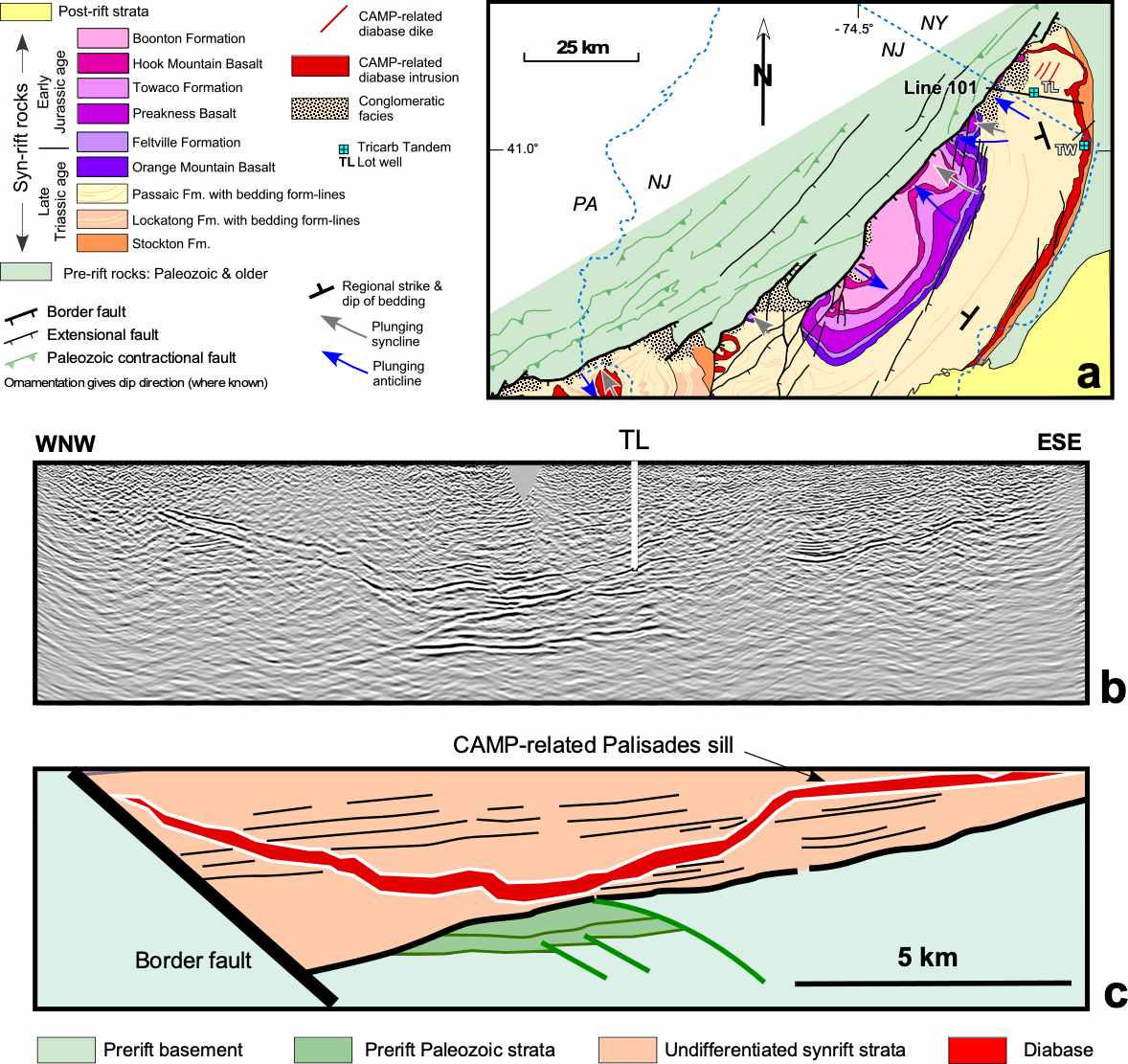

Sandia seismic line 101 images the northern end of the Newark basin near the New Jersey – New York border (map in a). In b is an uninterpreted version of the seismic profile. In c is the interpretation of the profile, constrained by reflection geometry, surface data, and well data (TL, Tandem Lot). Click on diagram to see a larger version. Modified from Olsen et al. (2016) and Withjack et al. (2020, 2022).
